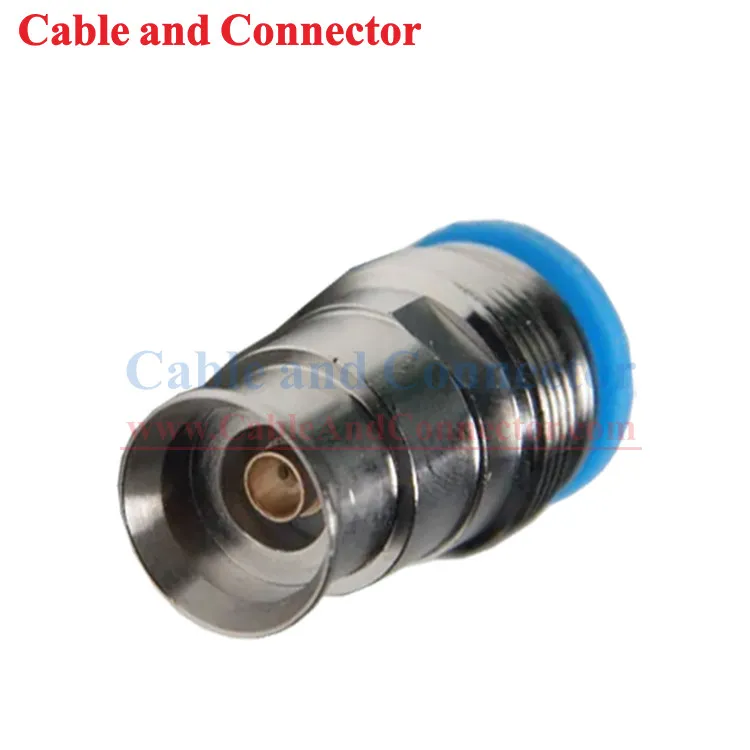

4.3/1{{10}} Dwat Fi Soude Kalite Konektè pou 1/2" Super Flexible RF Feeder Kab, Soudure Connector, 1/2" Super Flexible Kab Konektè, Karakteristik Enpedans: 50 Ohm, rezistans izolasyon: pi gran pase oswa egal a 5000MΩ, rezistans kontak sant mwens pase oswa egal a 1.0mQ, Rezistans kontak ekstèn: Mwens pase oswa egal a 0.60 mΩ, Dielectric reziste vòltaj: 2000V rms (AC), Pèt Ensèsyon (@690-960 MHZ): Mwens pase oswa egal a 0.08dB, Axial kenbe fòs nan sant kondiktè: 30N, Materyèl ak Plating: (an kwiv, PTEE, Silisyòm kawotchou, Silver plake, Trimetal Plake, Nikèl plake), RoHS: Konfòme, Klas sele: IP68, Ranje Tanperati: -45 degre a +85 degre.
Spesifikasyon
|
Atik |
Spesifikasyon |
|||||
|
Modèl CAC |
CACRCC-NSST-1/2-F |
CACRCC-NRAST-1/2-M |
CACRCC-7/16SST-1/2-F |
CACRCC-7/16RAST-1/2-M |
CACRCC-4.3/10SST-1/2-F |
CACRCC-4.3/10RAST-1/2-M |
|
CACRCC-NSST-1/2S-F |
CACRCC-7/16SST-1/2S-F |
CACRCC-4.3/10SST-1/2S-F |
||||
|
CACRCC-NSST-1/2-M |
CACRCC-NRAST-1/2S-M |
CACRCC-7/16SST-1/2-M |
CACRCC-7/16RAST-1/2S-M |
CACRCC-4.3/10SST-1/2-M |
CACRCC-4.3/10RAST-1/2S-M |
|
|
CACRCC-NSST-1/2S-M |
CACRCC-7/16SST-1/2S-M |
CACRCC-4.3/10SST-1/2S-M |
||||
|
Materyèl ak PLATING |
||||||
|
Pin-Sant kontak |
Kwiv / Silver plake |
Kwiv / Silver plake |
Kwiv / Silver plake |
Kwiv / Silver plake |
Kwiv / Silver plake |
Kwiv / Silver plake |
|
Eksteryè kontak & kò |
Kwiv / Trimetal plake |
Kwiv / Trimetal plake |
Kwiv / Trimetal Platad |
Kwiv / Trimetal plake |
Kwiv / Trimetal plake |
Kwiv / TrimetalPlated |
|
Dielectric |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
|
Joint |
Silisyòm kawotchou |
Silisyòm kawotchou |
Silisyòm kawotchou |
Silisyòm kawotchou |
Silisyòm kawotchou |
Silisyòm kawotchou |
|
Nwa |
Kwiv / Nikèl plake |
Kwiv / Nikèl plake |
Kwiv / Nikèl plake |
Kwiv / Nikèl plake |
Kwiv / Nikèl plake |
Kwiv / Nikèl plake |
|
Karakteristik elektrik |
||||||
|
Karakteristik Enpedans |
50 Ohm |
50 Ohm |
50 Ohm |
50 Ohm |
50 Ohm |
50 Ohm |
|
Rezistans izolasyon |
Pi gran pase oswa egal a 5000MQ |
Pi gran pase oswa egal a 5000MQ |
Pi gran pase oswa egal a 5000MQ |
Pi gran pase oswa egal a 5000MQ |
Pi gran pase oswa egal a 5000MQ |
Pi gran pase oswa egal a 5000MQ |
|
Sant kontak rezistans |
Mwens pase oswa egal a 1.00mQ |
Mwens pase oswa egal a 1.00mg |
Mwens pase oswa egal a 0.40mQ |
Mwens pase oswa egal a 1.00 mQ |
Mwens pase oswa egal a 1.00mo |
Mwens pase oswa egal a 0.40 mg |
|
Rezistans kontak ekstèn |
Mwens pase oswa egal a 0.25ma |
Mwens pase oswa egal a 0.25mQ |
Mwens pase oswa egal a 0.20mQ |
Mwens pase oswa egal a 0.60mΩ |
Mwens pase oswa egal a 0.60mΩ |
Mwens pase oswa egal a 0.20mQ |
|
Dielectric reziste vòltaj |
2000Vrms (AC) |
2000Vrms (AC) |
2000Vrms (AC) |
2000Vrms (AC) |
2000Vrms (AC) |
2000Vrms (AC) |
|
Pèt Ensèsyon 0690-960 MHZ |
Mwens pase oswa egal a 0.10dB |
Mwens pase oswa egal a 0.10dB |
60.08dB |
60.08dB |
60.08dB |
60.08dB |
|
01700-2700 MHZ |
60.15dB |
Mwens pase oswa egal a 0.15dB |
Mwens pase oswa egal a 0.15dB |
Mwens pase oswa egal a 0.12dB |
60.12dB |
60.12dB |
|
02700-3000 MHZ |
Mwens pase oswa egal a 0.20dB |
Mwens pase oswa egal a 0.20dB |
Mwens pase oswa egal a 0.15dB |
Mwens pase oswa egal a 0.15dB |
Mwens pase oswa egal a 0.15dB |
Mwens pase oswa egal a 0.15dB |
|
@3000-5800 MHZ |
Mwens pase oswa egal a 0.25dB |
60.20dB |
Mwens pase oswa egal a 0.20dB |
s0.20dB |
60.20dB |
60.20dB |
|
VSWR @690-960 MHZ |
Mwens pase oswa egal a 1.10 |
51.10 |
51.10 |
61.10 |
Mwens pase oswa egal a 1.10 |
Mwens pase oswa egal a 1.10 |
|
@1700-2700 MHZ |
Mwens pase oswa egal a 1.13 |
Mwens pase oswa egal a 1.13 |
Mwens pase oswa egal a 1.13 |
Mwens pase oswa egal a 1.13 |
Mwens pase oswa egal a 1.13 |
Mwens pase oswa egal a 1.13 |
|
02700-3000 MHZ |
Mwens pase oswa egal a 1.15 |
Mwens pase oswa egal a 1.15 |
Mwens pase oswa egal a 1.15 |
Mwens pase oswa egal a 1.15 |
Mwens pase oswa egal a 1.15 |
Mwens pase oswa egal a 1.15 |
|
@3000-5800 MHZ |
Mwens pase oswa egal a 1.20 |
Mwens pase oswa egal a 1.20 |
Mwens pase oswa egal a 1.20 |
Mwens pase oswa egal a 1.20 |
Mwens pase oswa egal a 1.20 |
Mwens pase oswa egal a 1.20 |
|
PIM3 |
Mwens pase oswa egal a -160dBc |
Mwens pase oswa egal a -155dBc |
Mwens pase oswa egal a -160dBc |
Mwens pase oswa egal a -160dBc |
Mwens pase oswa egal a -160dBc |
Mwens pase oswa egal a -160dBc |
|
Espesifikasyon anviwònman ak mekanik |
||||||
|
Kalite fòs retansyon |
||||||
|
Sant kontak |
/ |
/ |
/ |
/ |
/ |
/ |
|
Kontak ekstèn |
/ |
/ |
/ |
Pi gran pase oswa egal a 4.0 N |
Pi gran pase oswa egal a 4.0 N |
/ |
|
koupl nwa koupl |
0.7-1.1 N-m |
0.7-1.1 N-m |
20-28N-m |
5-15N-m |
5-15 N-m |
20-28 N-m |
|
Coupling nwa retansyon fòs |
Pi gran pase oswa egal a 250N |
Pi gran pase oswa egal a 250N |
Pi gran pase oswa egal a 450 N |
Pi gran pase oswa egal a 450 N |
Pi gran pase oswa egal a 450N |
Pi gran pase oswa egal a 450N |
|
Dirab (koupman) |
Pi gran pase oswa egal a 500 sik |
Pi gran pase oswa egal a 500 sik |
Pi gran pase oswa egal a 500 sik |
Pi gran pase oswa egal a 500 sik |
Pi gran pase oswa egal a 500 sik |
Pi gran pase oswa egal a 500 sik |
|
Axial kenbe fòs nan kondiktè sant |
28 N |
28 N |
200 N |
200 N |
30N |
30 N |
|
Chòk |
Dapre std: IEC 60068-2-27/GB/T 2423.5 |
|||||
|
Vibration |
Dapre std: IEC60068-2-6/GB/T 2423.10 |
|||||
|
Sèl vapè dlo |
Dapre estanda: IEC 60068-2-11/GB/T2423.17 (48H) |
|||||
|
Ranje Tanperati |
-45 degre a +85 degre |
|||||
|
RoHS |
Konfòme |
|||||
|
Klas sele |
lp68 |
|||||
